A Quick Motorcycle Chain Switch

After previous experiences breaking and installing motorcycle chains I figured this time it would be fairly straightforward thanks to a good tool and knowing what I’m doing.  The Tiger’s chain had a pretty severe tight spot in it. When I set the tight spot to spec (40mm of slack), the loose part was wobbling around with twice that.  If I set the loose part to spec the tight part would rumble on the sprockets.  You could actually feel the difference in chain tension under acceleration as a surge.

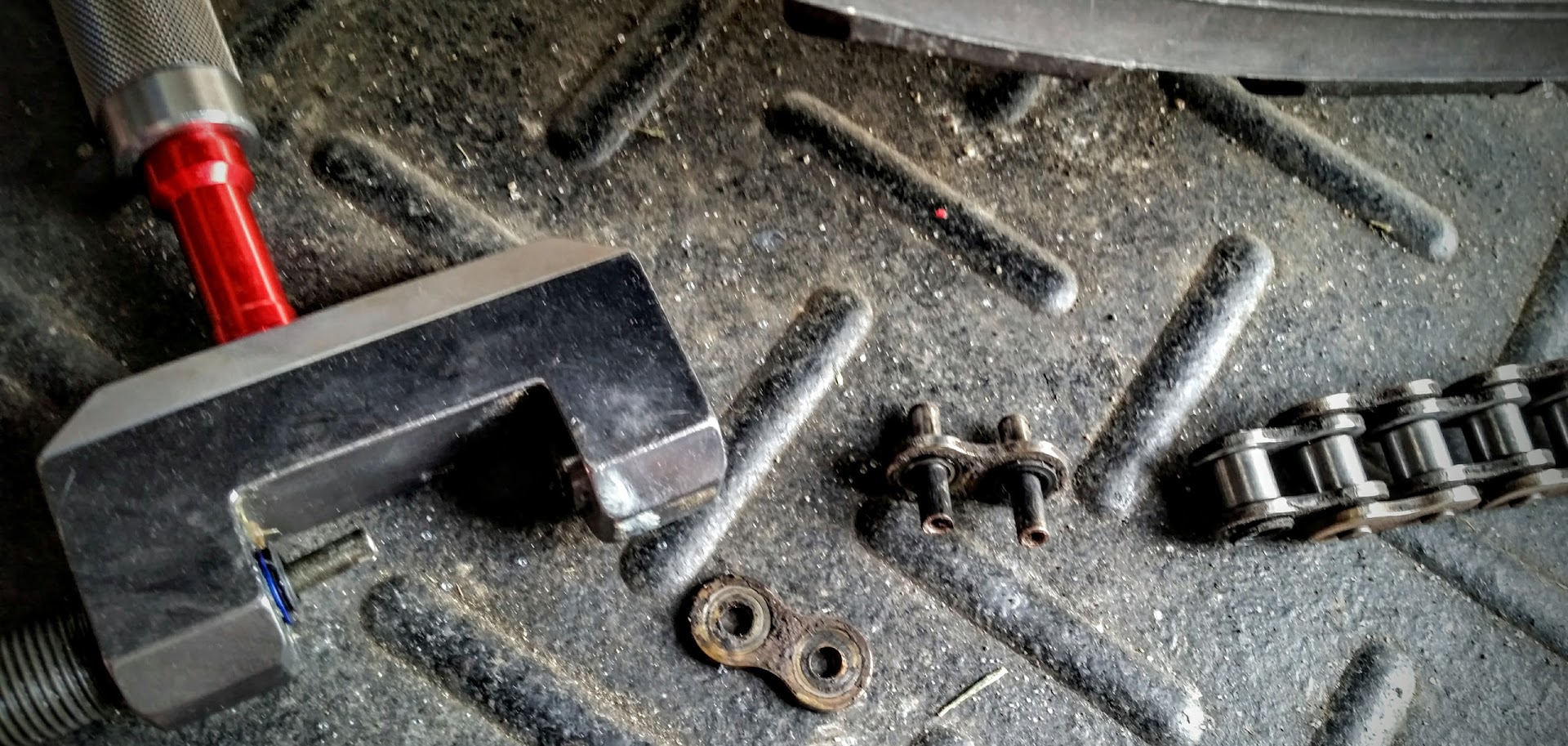

The tool I got last time was quick to set up.  The blue 500 size chain pin pusher slotted right in out of the handle where it had been sitting since my last chain change on the Ninja over two years ago.

The Tiger chain is a 535 sized chain (wider than the Ninja’s, but the same pitch length between the links – the Ninja was a 520 chain).

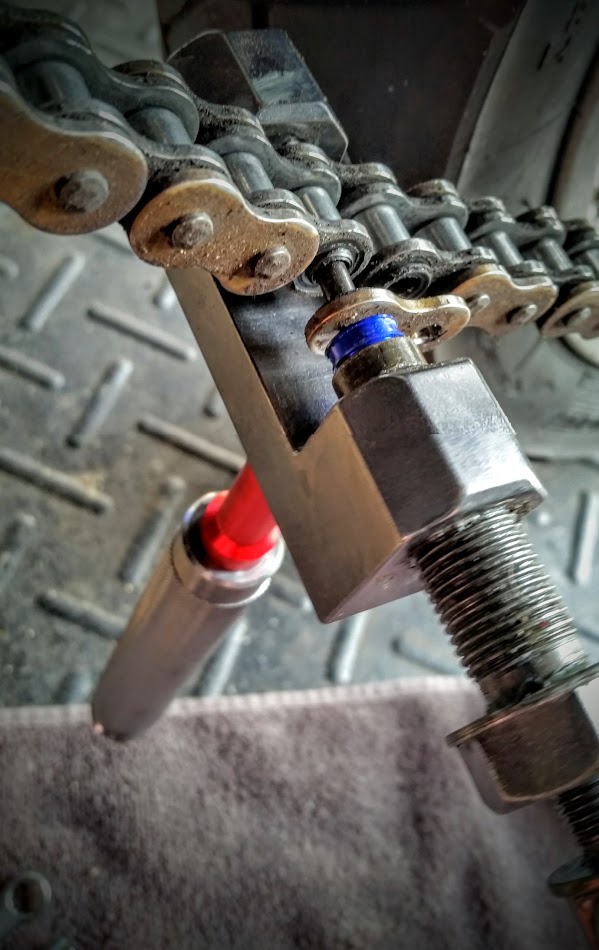

With the pin pusher piece in place I tightened the outer bolt with a 10mm ratchet and it easily pushed the pins out of the old master link with only mild force on a small ratchet.

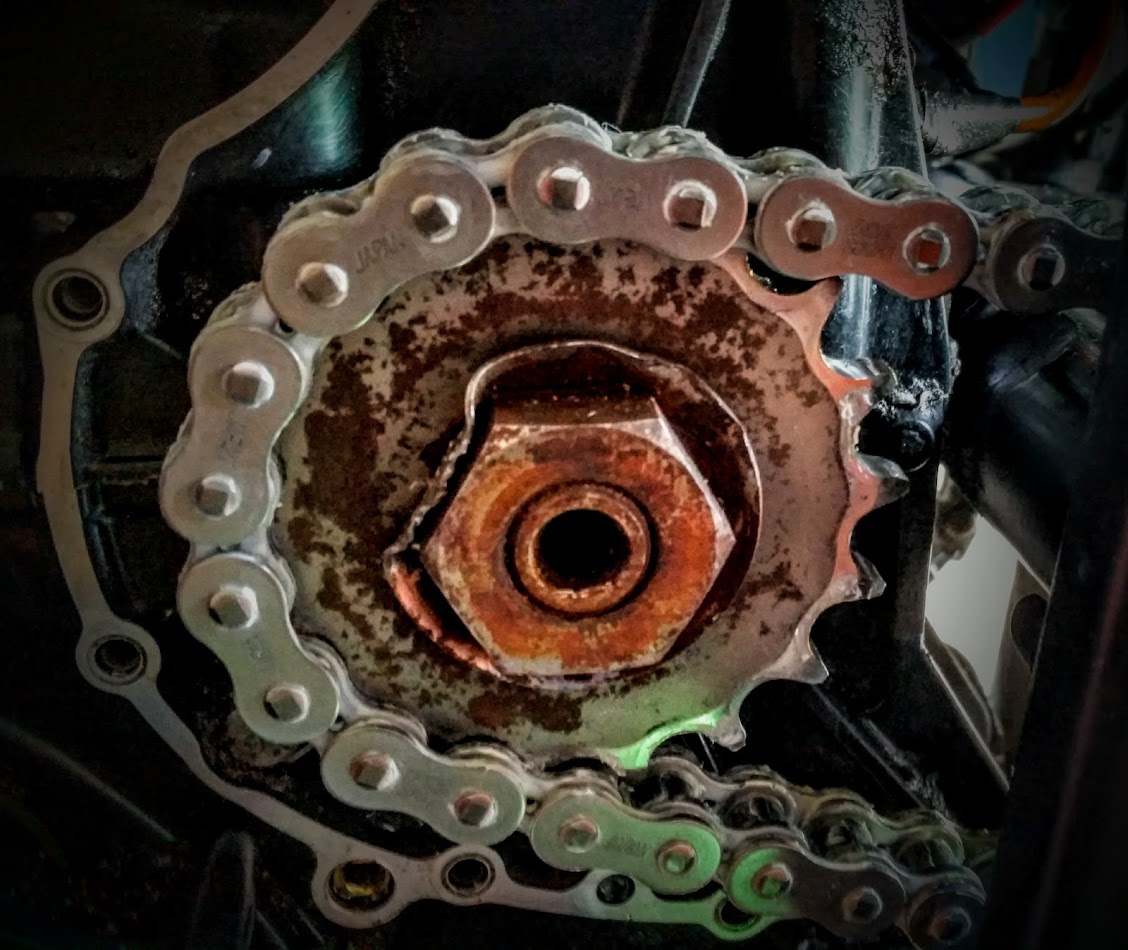

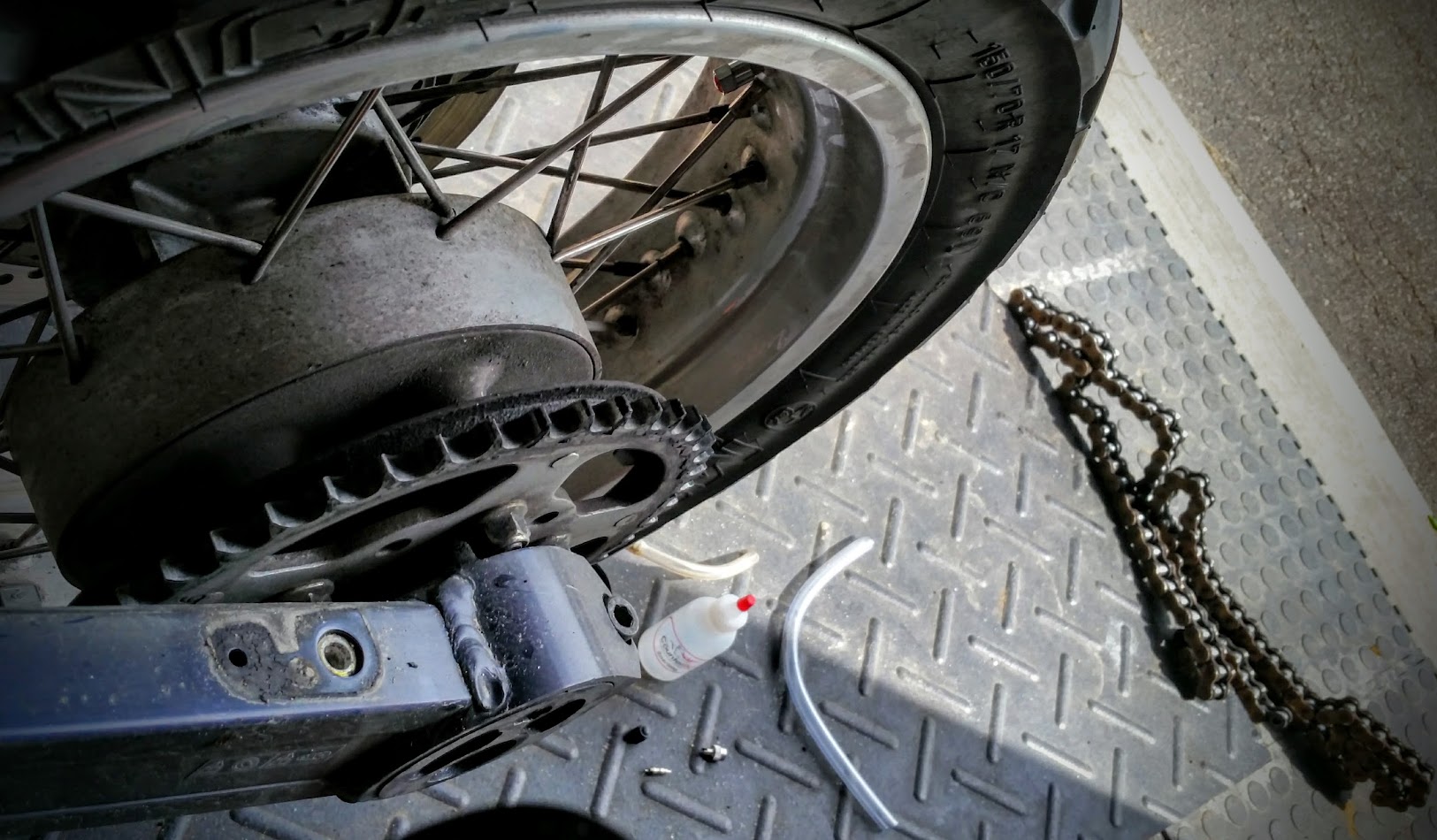

With the old chain removed I spent some time cleaning up the sprockets, which were in great condition.  The front sprocket was packed with years of gum from chain lube and it took a while to get it all out, first with a screwdriver and afterwards wiping it up with some WD40.  With it all cleaned off it looked like a bit of rust had found its way onto the front sprocket.


The rear sprocket was only covered in chain oil remnants and cleaning it up was easily done.

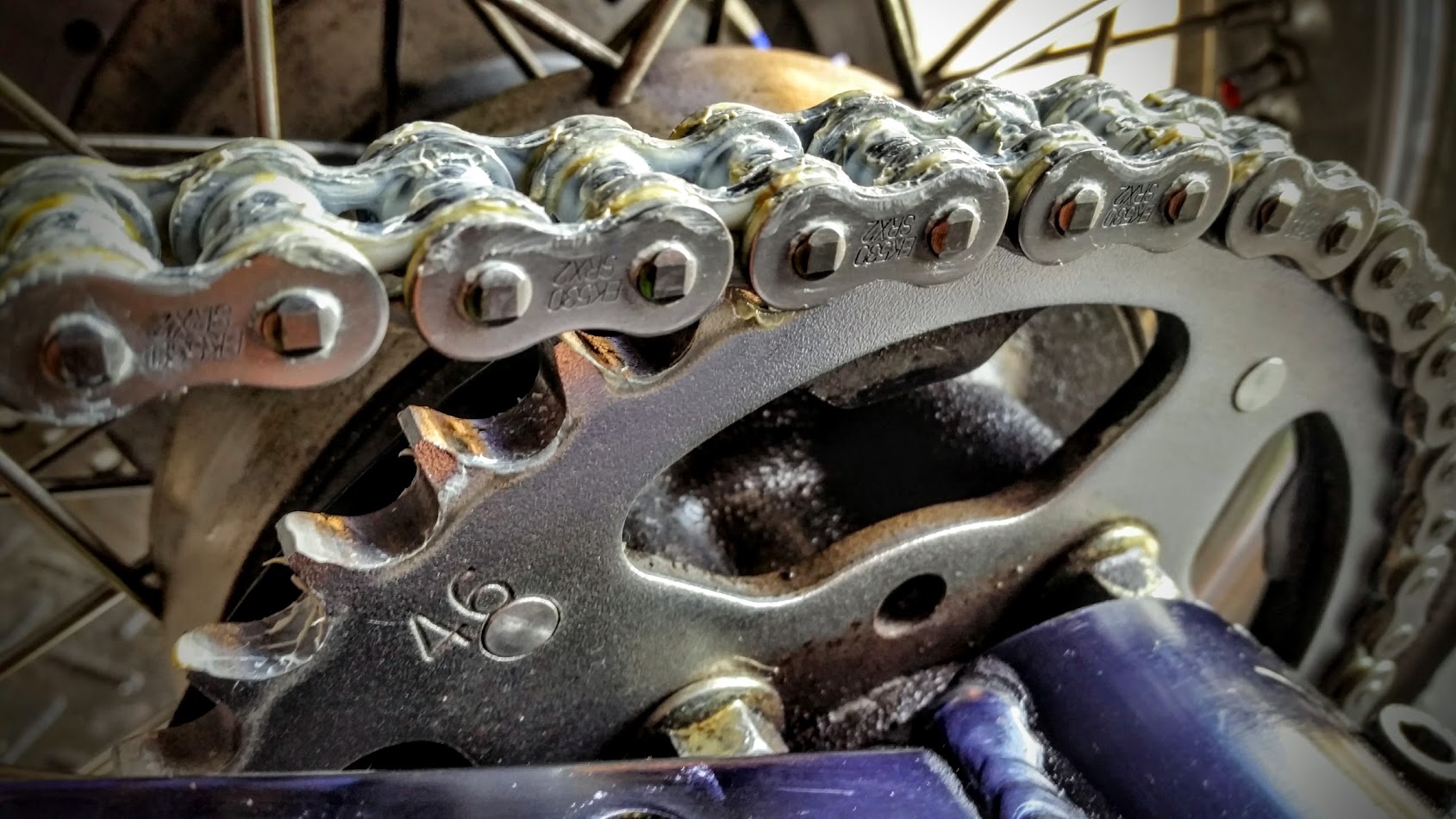

If you’re not yahooing around and yanking on your chain like a madman all the time sprockets tend to last, especially big, beefy 535 wide ones; this bike has only been owned by gentlemen.  I might swap out the rear 46 tooth sprocket for a 47 tooth one to lower the revs slightly on the next chain, but that’s years down the road, and with the sprockets in good shape, it seemed silly to do a full switch now.

A master link came with the chain which is a bit off-putting because Fortnine immediately filled the screen with master links after I purchased the chain, which I took to mean I needed one.  I guess I’ll hang on to it, but if the chain I’m buying comes with it letting me know seems like the polite thing to do rather than encouraging an upsell.

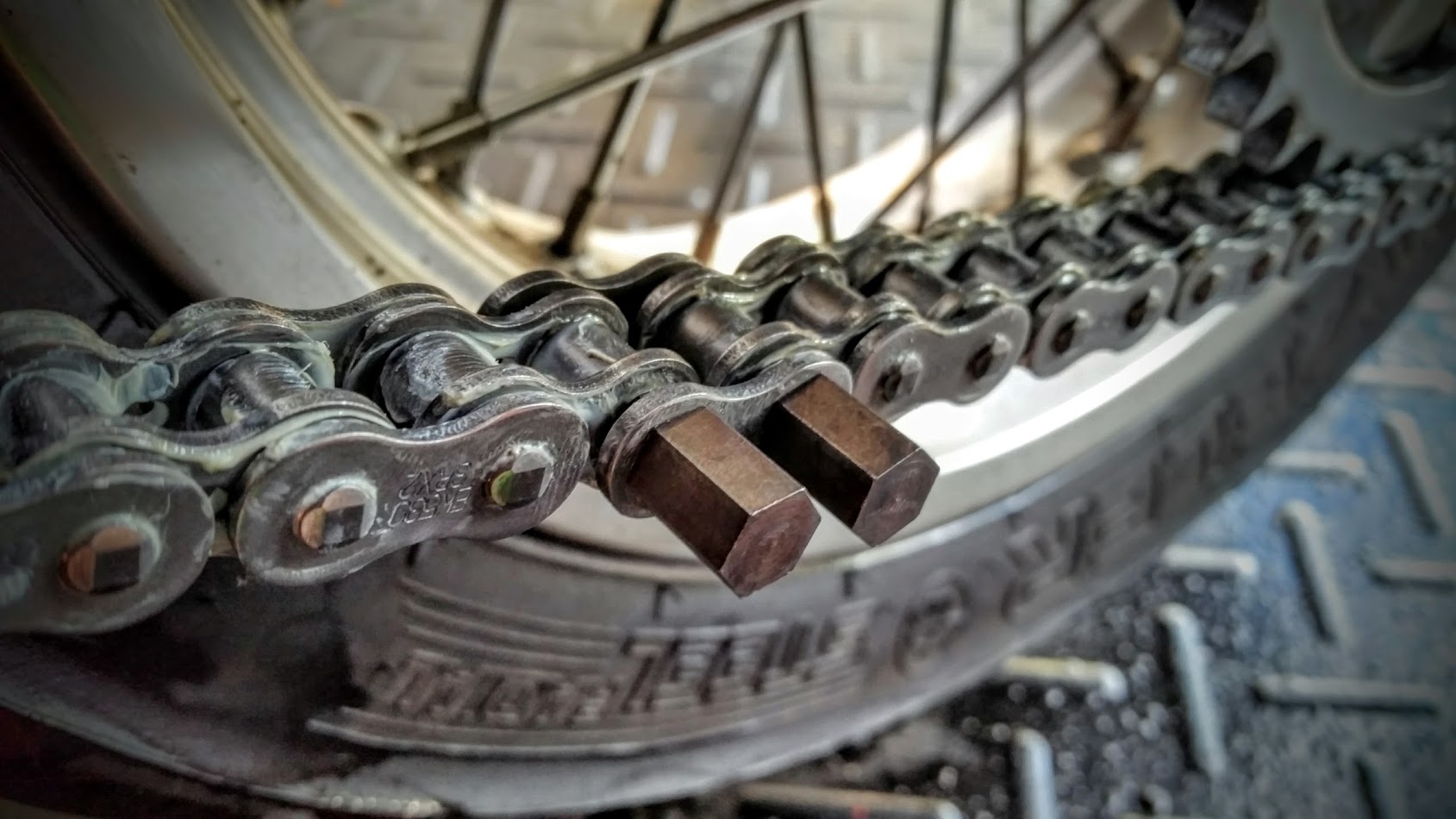

The master link that came with the chain had an interesting process for installation.  I’m told this is quite common on bicycles now.  The master link pins have a threaded piece on the end of them.  You thread the long pins on the chain and then alternate tighten the bolts until they won’t go any further.



This snugs the outer piece of the master link onto the pins.  When you’re done you back off the nuts a few turns and then break them off with a pair of pliers.  It worked well.

A chain so new it’s still covered in the wax it was packaged in to stop rust.

With the new chain set to 35mm of sag top and bottom and lubricated with chain wax (preferred because it doesn’t make a gooey mess of things, sticks to the chain well and is also a lovely honey colour), it was time for a test ride.  A twenty minute ride in the setting sun up to 100kms per hour demonstrated all sorts of improvement.  The surging feeling was gone making the bike much smoother under acceleration.  In corners that surging could destabalize the bike, it doesn’t any more.  The new chain is also noticably quieter.

This time round I think the actual chain removal and installation took about 40 minutes moving slowly and deliberately.  The cleanup of the front sprocket was what took the most time, though it probably did a lot to quiet the new chain (not running through a tunnel of goop on each revolution has to be better).

While I had the tools out I finished the counteract balancing beads install I started earlier in the week by doing the back tire as well.  With beads now in the front and rear tires vibrations through the handlebars are gone and the whole bike is rattle free at speed.  I never really got to try them out on the Concours, but what little I did seemed to work, and seeing as the beads are cheaper than taking in tires to get balanced anyway, why not?  I’m glad I did.

The Tiger is now as arrow straight and smooth as it can be.  It was a joy to ride it home as the sun set on Sunday evening.
